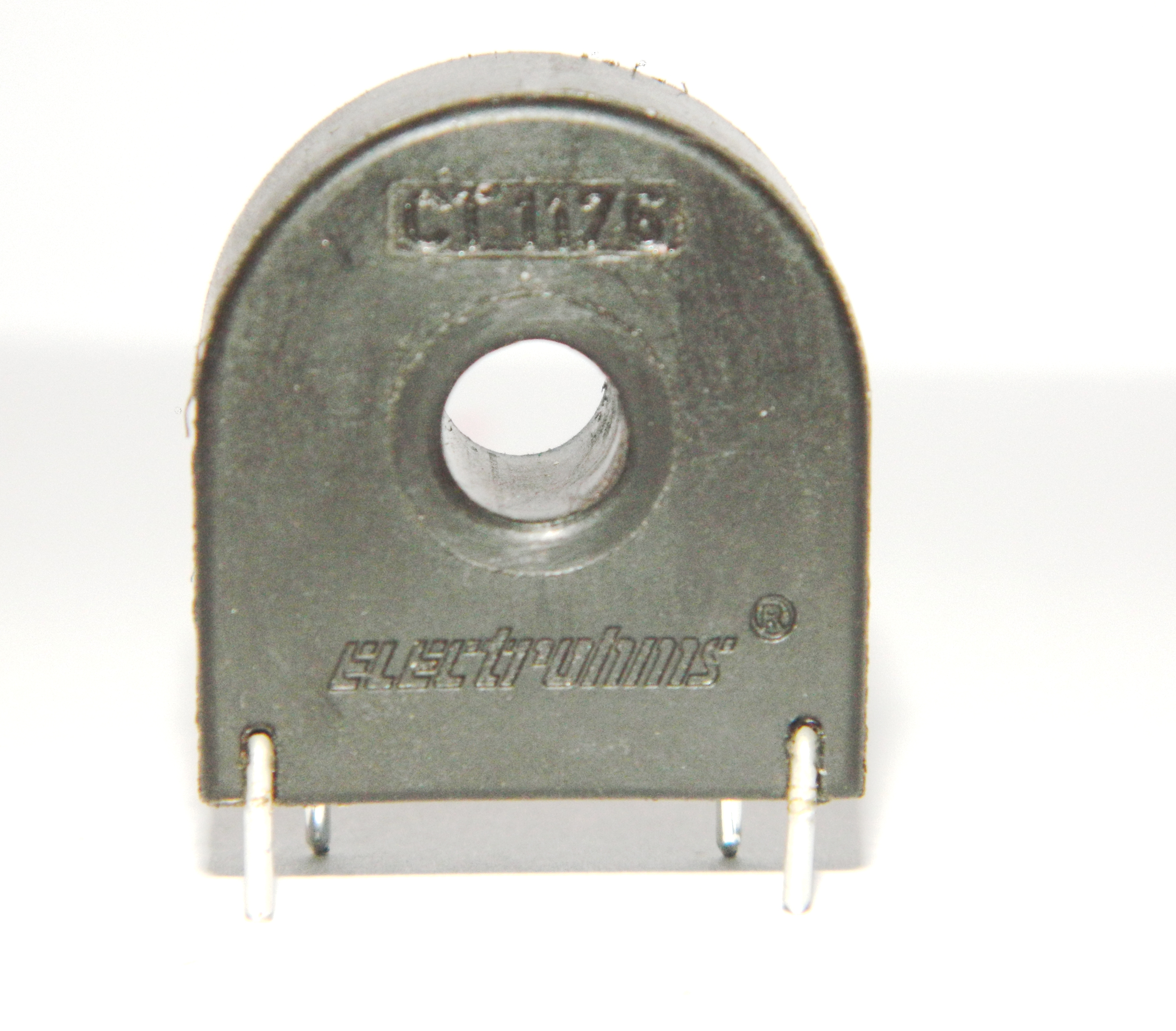

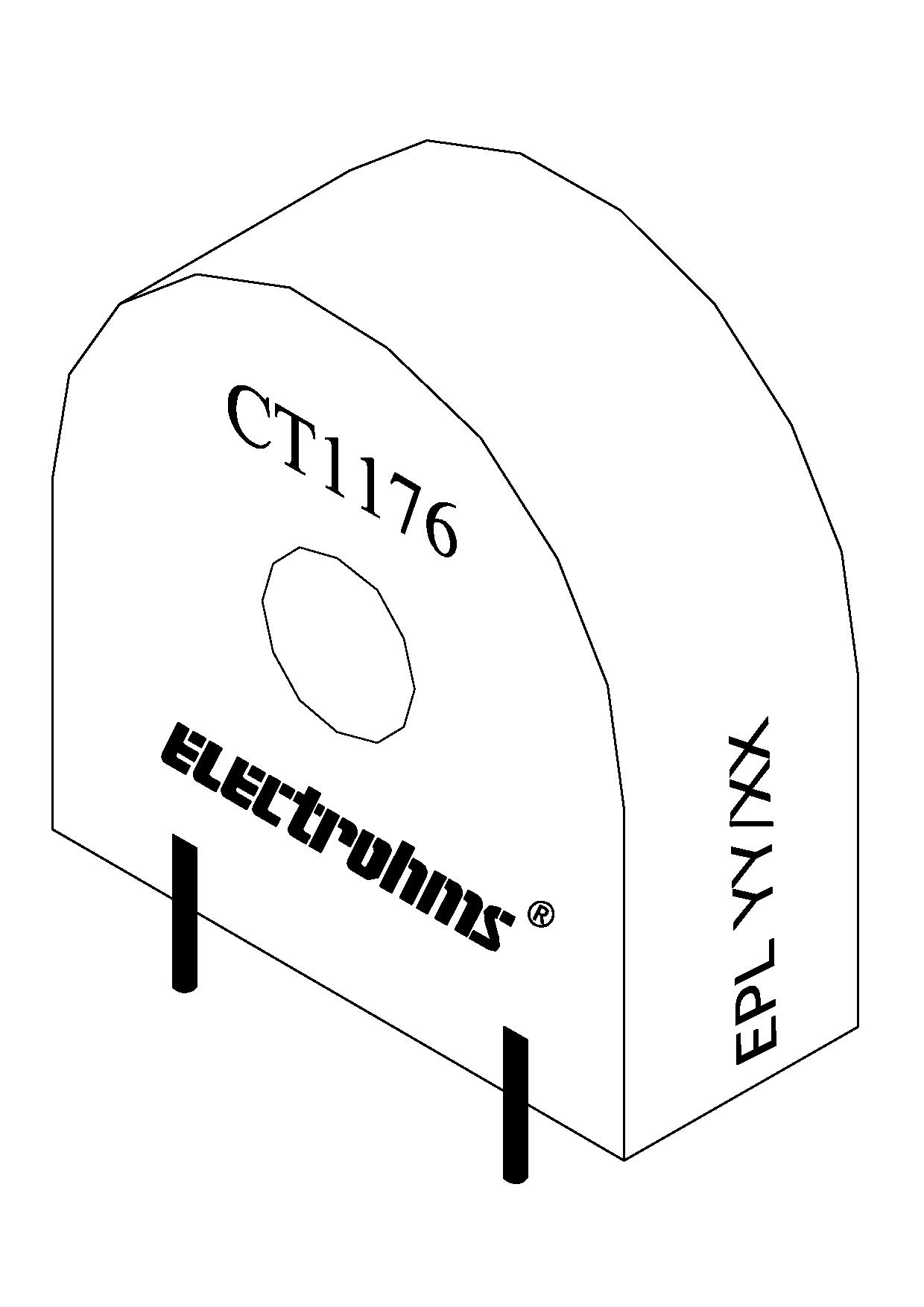

CT1176-RC

Current Transformers Energy Metering

High End Metering Current Transformers High Accuracy Current Transformers for whole current measurements in energy metering .

SPECIFICATION

Product No CT1176-RC
Ip (A) 20
Turn Ratio 1 : 2500
Pri. Opening 6.3 mm
Temp. Operating -40° ... +85°C
Secondary Termination Pin Terminals
Mounting Type PCB
Rb 90 Ω
AE % 0.5
PE (Deg) 0.5
Secondary Resistance 98 - 120 Ω

KEY FEATURES

  • High Precision AC whole current transformer
  • Low Amplitude Error & Phase error
  • High Linearity
  • Temperature coefficient

RELATED APPLICATION

  • Energy management
  • Smart Meter
