SOLUTIONS

Solar & Wind

Renewable energy is clean, affordable, domestic, and effectively infinite. Wind energy is now one of the most cost-effective sources of new generation, competing with new installations of coal, gas and nuclear power. Solar energy can be used for generating electricity during the day and complements wind energy generated during the night. Electrohms offers wide range of current and voltage sensors designed specifically for these applications.

Applications

SSM/PVEM
The Solar string monitoring (SSM)assembly uses hall effect current sensors to provide measurement of string currents. The string currents measured are accessible over MODBUS through a RS-485 communication port by a central monitoring/SCADA software system. photo voltaic energy management (PVEM) uses HECT for monitoring the PV systems , Electrohms offers a Master and slave configuration that enables monitoring of 8 /12/24 channels in compact size.
Central/Off Grid Inverters
Central inverters are designed for applications such as : large arrays installed on buildings, industrial facilities , and field installations - they are basically very large string inverter.Low capital price per watt,High efficiency, Comparative ease of installation are some of the advantage. Off Grid Inverters are for smaller stand alone installations and handle lower power . Electrohms offers closed loop type hall effect current sensors for wide range of currents to manufacturers of central inverters and off grid inverters.
Converters For Wind Energy
The converter is a key element of the wind turbine. Converters that can enhance turbine power output through innovative control schemes and improve generator performance are preferred due to their flexible and complete frequency converters help provide reliability, availability, low operating costs, grid compliance and network quality for increased productivity.

Featured Product

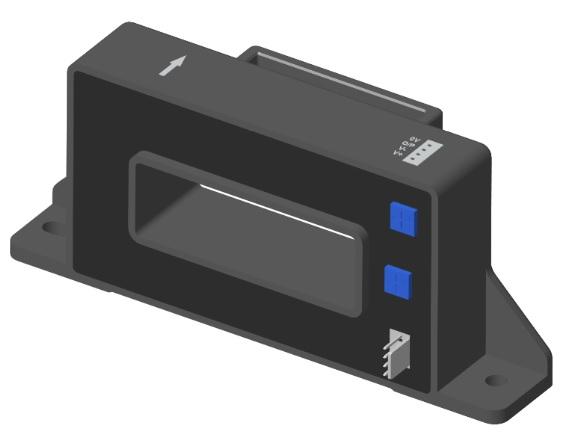

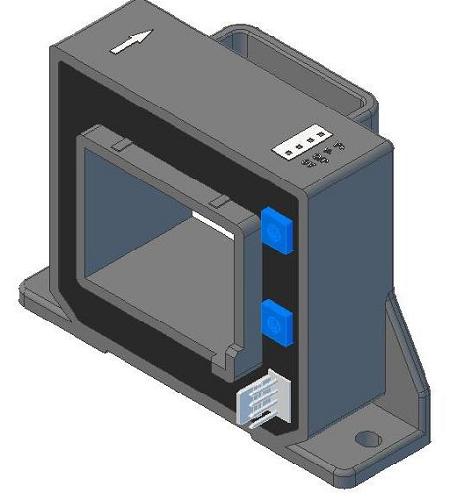

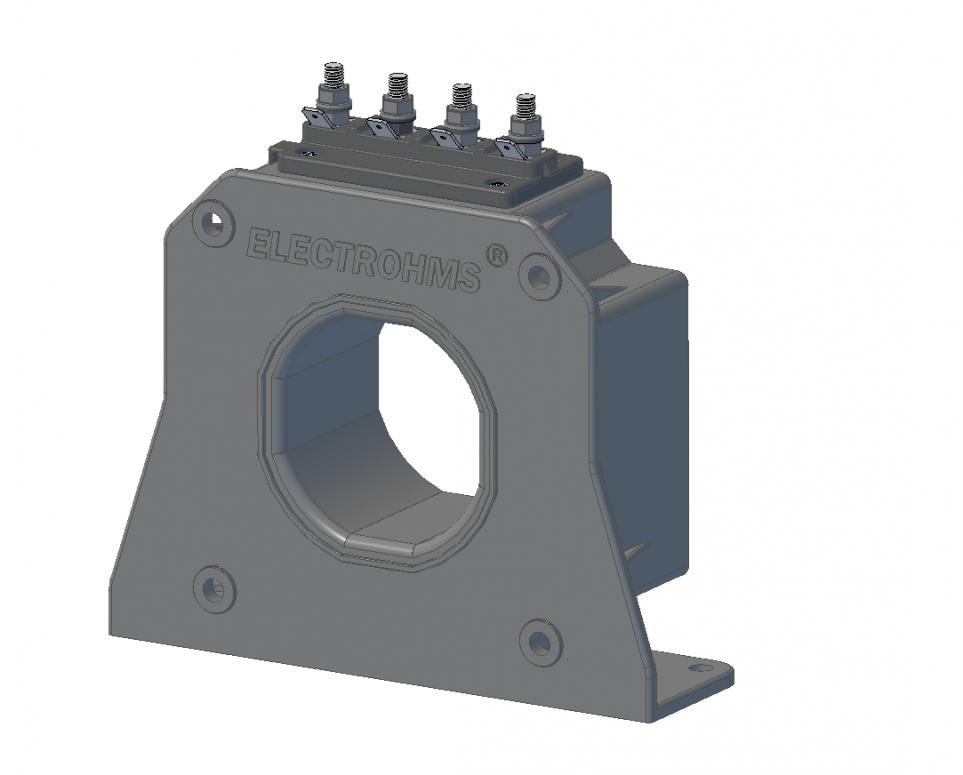

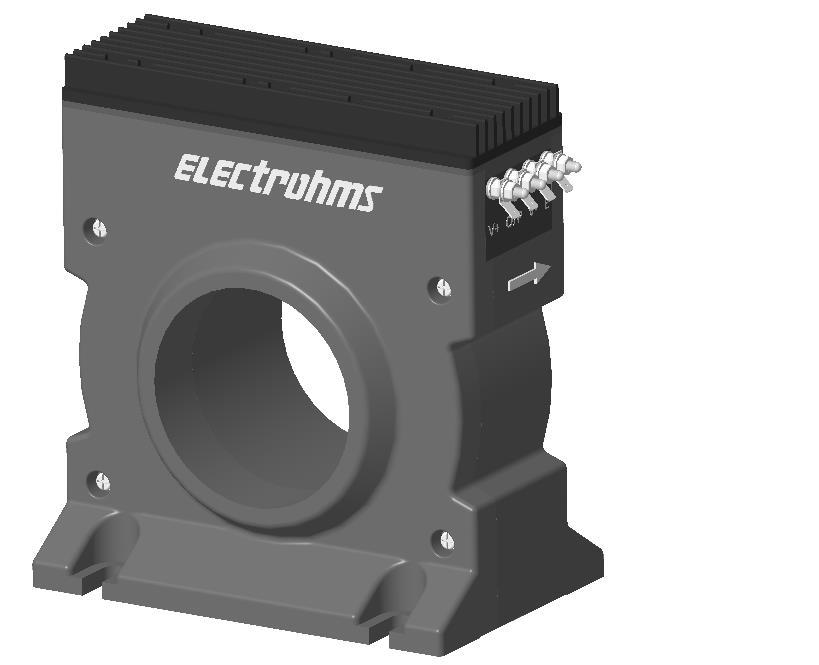

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc

Resources

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc

Resources

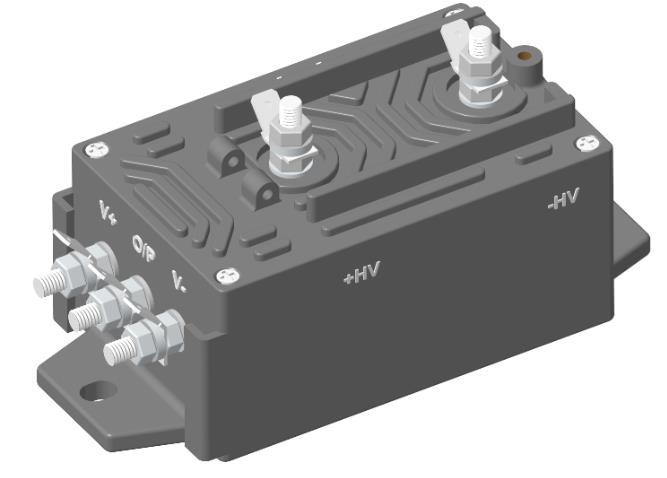

The measured voltage, VP, is applied directly to the sensors primary connections through a resistor network followed by signal conditioning circuitry into a high isolation, precision optical amplifier stage. The isolated output is amplified through a precision linear circuit producing an output signal which is completely isolated from the primary and is an exact representation of the input voltage. The power conditioning circuits feeding the optical stage is designed with an even higher isolation to the signal circuitry to ensure adequate protection to the application power electronics

Resources

These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc



These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc



VH series - User specified primary resistor where the user connects a primary resistor in series with the transducer. The value of the primary resistor R1 is selected according to the voltage to be measured. This approach allows for maximum flexibility.

Resources

VH series - User specified primary resistor where the user connects a primary resistor in series with the transducer. The value of the primary resistor R1 is selected according to the voltage to be measured. This approach allows for maximum flexibility.

Resources

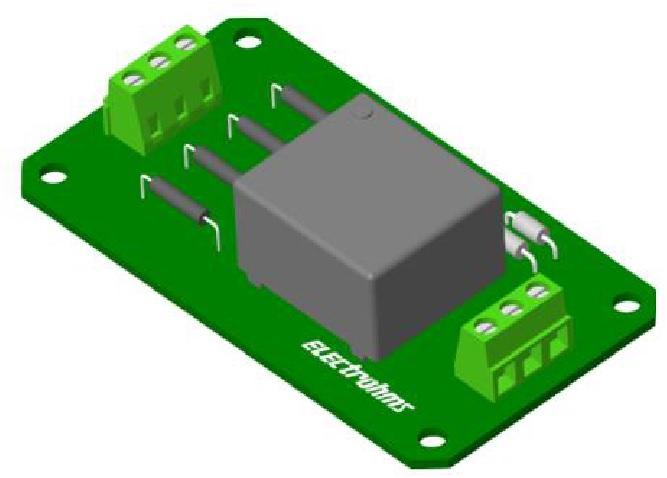

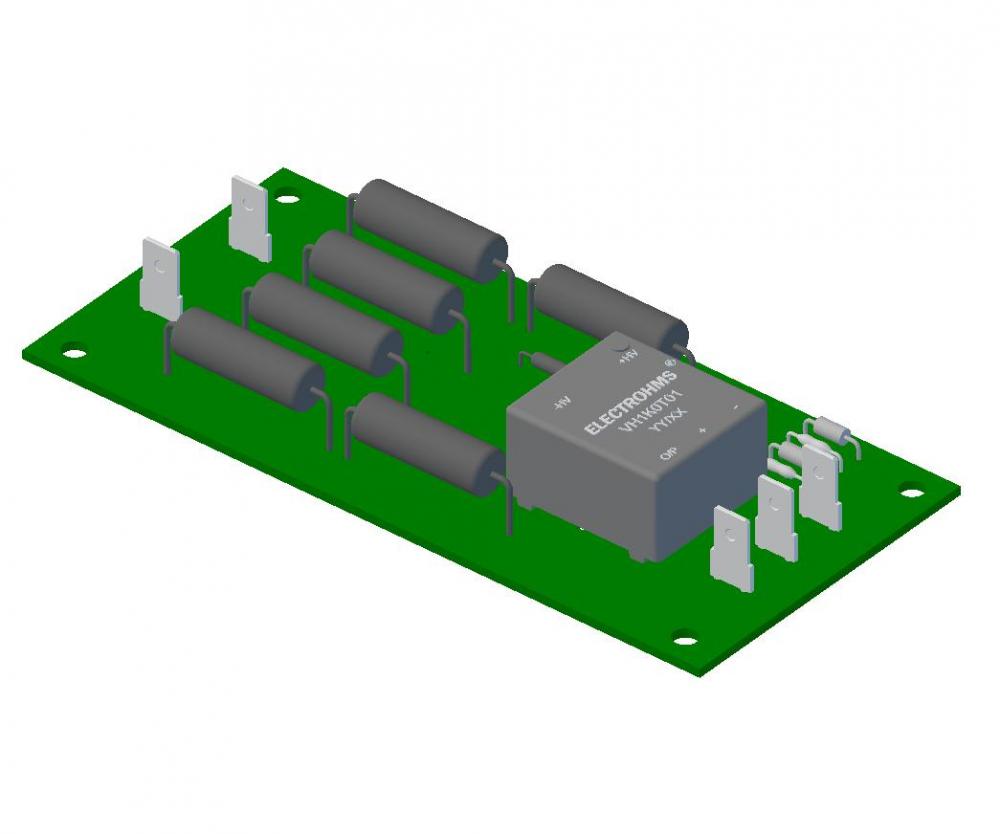

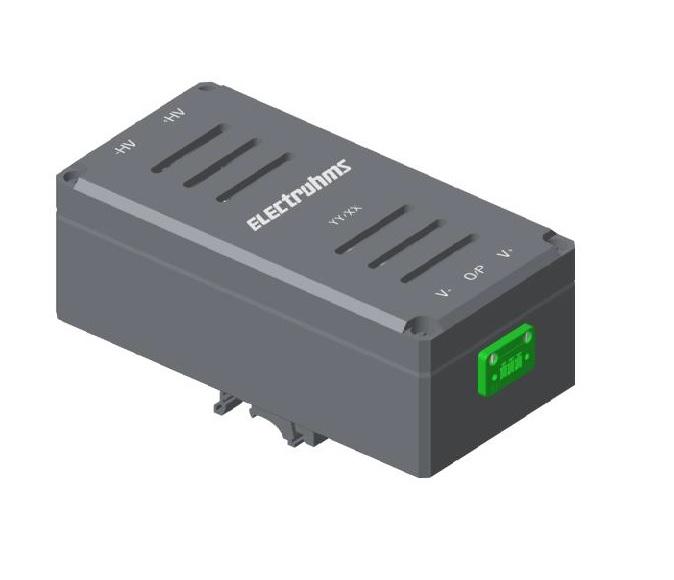

Integrated primary resistor: VHASM series - An integrated primary resistor networks determines the nominal measuring voltage of the transducer. Electrohms offers a wide selection of nominal voltage levels to cover a variety of applications.

Resources

Integrated primary resistor: VHASM series - An integrated primary resistor networks determines the nominal measuring voltage of the transducer. Electrohms offers a wide selection of nominal voltage levels to cover a variety of applications.

Resources

Integrated primary resistor: VHASM series - An integrated primary resistor networks determines the nominal measuring voltage of the transducer. Electrohms offers a wide selection of nominal voltage levels to cover a variety of applications.

Resources

Integrated primary resistor: VHASM series - An integrated primary resistor networks determines the nominal measuring voltage of the transducer. Electrohms offers a wide selection of nominal voltage levels to cover a variety of applications.

Resources

Integrated primary resistor: VHASM series - An integrated primary resistor networks determines the nominal measuring voltage of the transducer. Electrohms offers a wide selection of nominal voltage levels to cover a variety of applications.

Resources

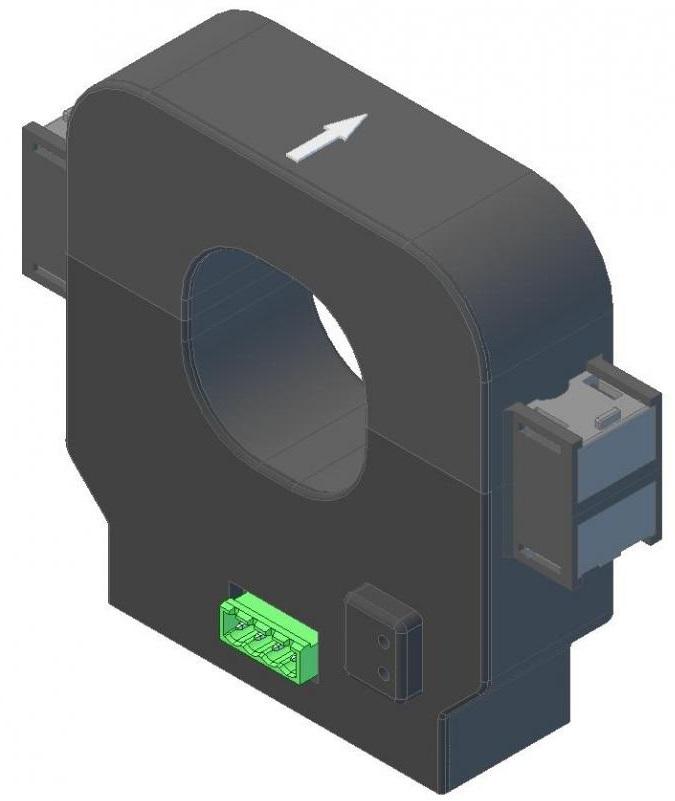

current sensors based on open loop Hall effect technology measure of direct, alternating and impulse currents, with galvanic isolation between the primary and secondary circuits The primary current lp flowing in the sensor creates a propotional primary magnetic flux. A Hall probe placed in the air gap of the magnetic circuit produces a hall voltage Vh which is proportional to this flux as well as the current Ip being measured. An electronic circuit amplifies this Hall voltage (Vh) allowing it to be directly utilised in the end application measurement circuit as a secondary output voltage Vs.The current sensor measures instantaneous values.

Resources

Hall Effect Current Sensor, Split Core Open Loop Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

Resources



Custom Solution Design

When an off-the-shelf component won't work, we can partner with you to design and produce custom current and voltage sensors for your unique needs. Whether your challenge is regulatory compliance or technology innovation, we can help reduce time to market and improve your bottom line.

We carefully investigate the design objectives based on the inputs received from you.
Based on cost, size, packaging, electrical performance, certification or approvals required, we create a template of product design.
Quote submitted with clear specifications, lead times for prototype and production batches, along with commercials.
Prototyping ensures quick shipment and reduction in approval time.
After acceptance of prototypes, a test and acceptance criteria is prepared and same is set up for the regular production batches by our production and Quality assurance team.
We ensure that the product required is delivered within the accepted schedule. Hence, if you require a customized solution, we are the right organization to be contacted.
