Specialty Products





ELECTROHMS , has developed many customized solutions based on customer requirements. The focus is on offering customers a cost effective product within the time frame defined .

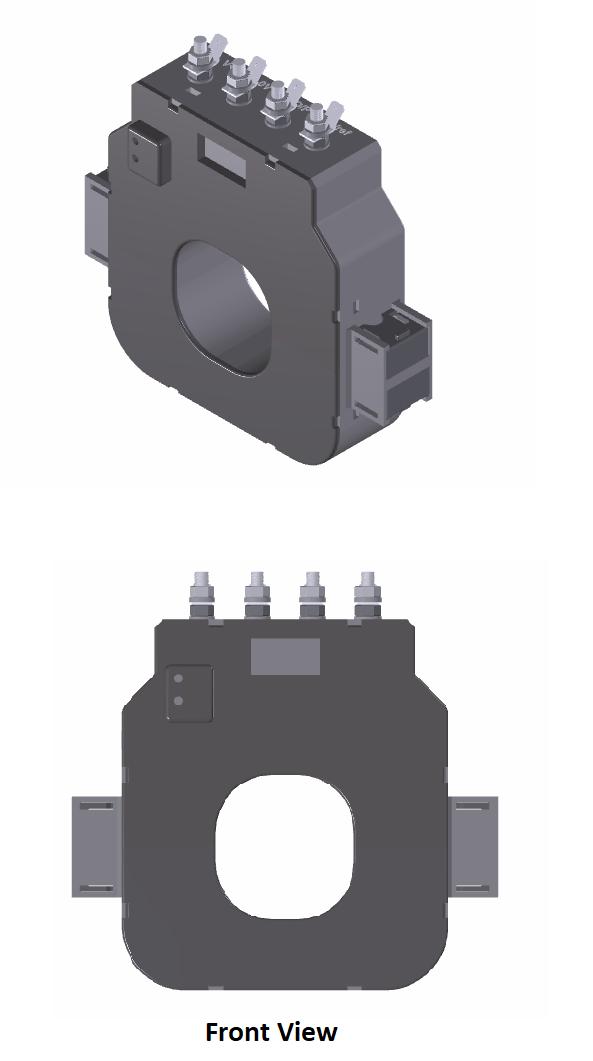

Split Core Hall effect current sensor

Split Core Hall effect current sensor

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense DC current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

KEY FEATURES :

  • DC current measurements with galvanic isolation
  • Extended measuring range in the same package
  • Single supply operation
  • Low power consumption
  • Good accuracy at nominal current
  • Protection from miss-wiring in any combination.

APPLICATIONS :

Railway Application
Battery Management system
EV Charger

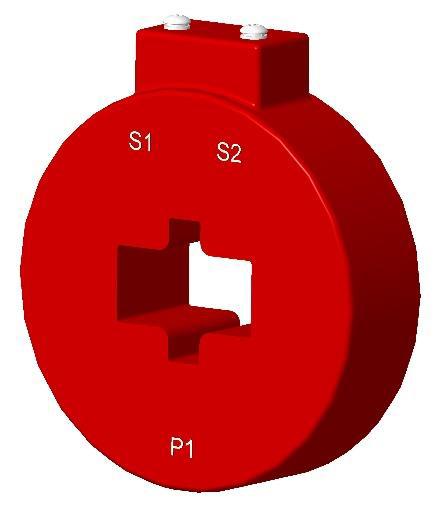

Resin Cast Current Transformer

Resin Cast Current Transformer

Rated 50 A to 4KA for monitoring busbar current. These current transformers are customized to meet specifications of various applications.

KEY FEATURES :

  • Busbar opening for Vertical & Horizontal Mounting.
  • Wide current range from 500A ...4KA
  • 3KV Isolation
  • Stud Type terminal

APPLICATIONS :

Power Supply panel - Busbar mounting
Widely used in Furnace, Electroplating , etc
PDU -CURRENT TRANSFORMERS ASSEMBLIES

PDU -CURRENT TRANSFORMERS ASSEMBLIES

Designed for monitoring multiple load circuits , using current transformers mounted on a bracket with cable harness.

KEY FEATURES :

  • CT size compact and Accurate
  • Easy Troubleshooting and Testing
  • Easy termination of cable harness
  • Continuous Monitoring

APPLICATIONS :

1. Branch Current measurement for
2. Data Centers

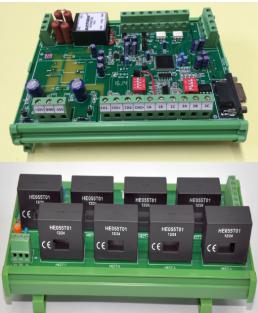

MOD BUS 8 Channel - Solar Current Modules

MOD BUS 8 Channel - Solar Current Modules

Electrohms Solar Current monitoring modules,are suitable for mounting inside Combiner Boxes for Solar String Monitoring. These Comprise of Master Module and slave modules and the maximum number of string that can be measured are 32 (4 slave modules)

KEY FEATURES :

  • 8 non-contact Hall Effect current sensors on slave unit
  • Modbus RTU RS-485 & RS-232 output for readings
  • Both Communications are isolated
  • Real Time readings of DC current Levels for all DC generating devices
  • Detection of Bi-directional currents
  • Modules can be customized for other industrial

APPLICATIONS :

1. Solar String monitoring
2. Off grid inverters
