SPECIFICATION

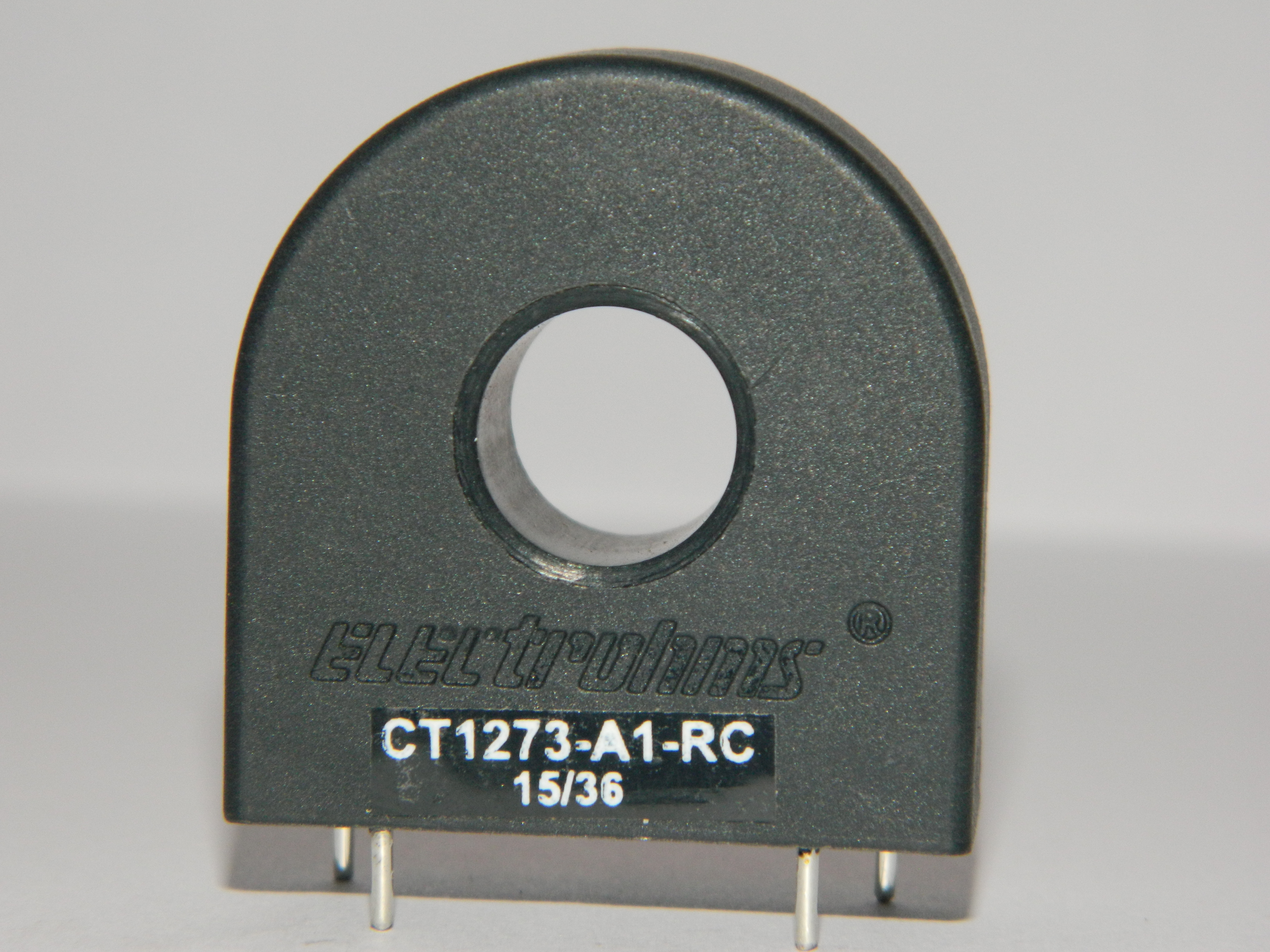

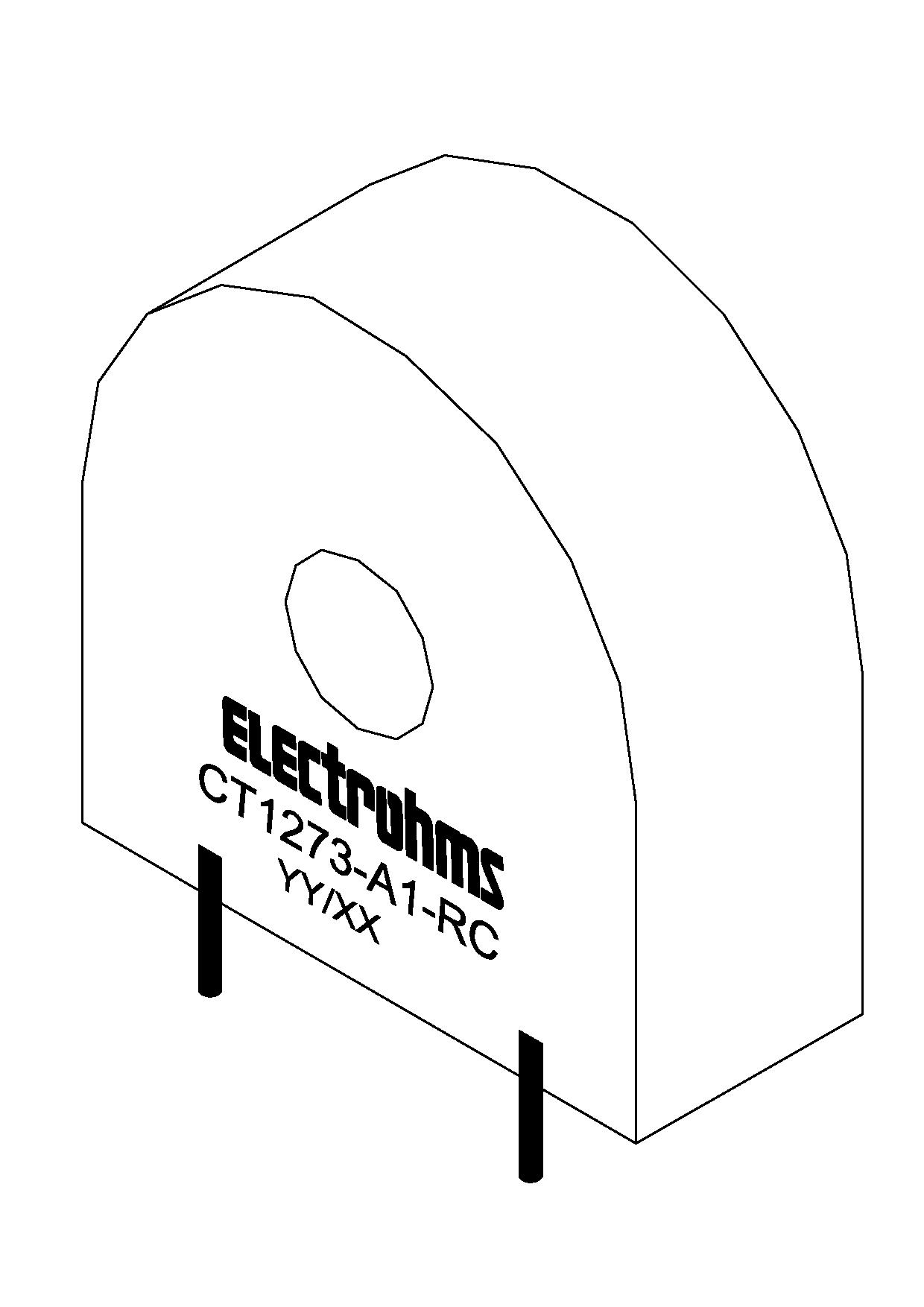

| Product No | CT1273-A1-Rc |
|---|---|
| Ip (A) | 100 |
| Turn Ratio | 1 : 2500 |
| Pri. Opening | 11.5 mm |
| Temp. Operating | -40° ... +85°C |
| Secondary Termination | Pin Terminals |
| Mounting Type | PCB |
| Rb | 7.5 Ω |
| AE % | 0.1 |
| PE (Deg) | 0.2 |
| Secondary Resistance | 37 - 47 Ω |
KEY FEATURES
- High Precision AC whole current transformer
- Low Amplitude Error & Phase error
- High Linearity
- Temperature coefficient
RELATED APPLICATION
- Energy management
