SPECIFICATION

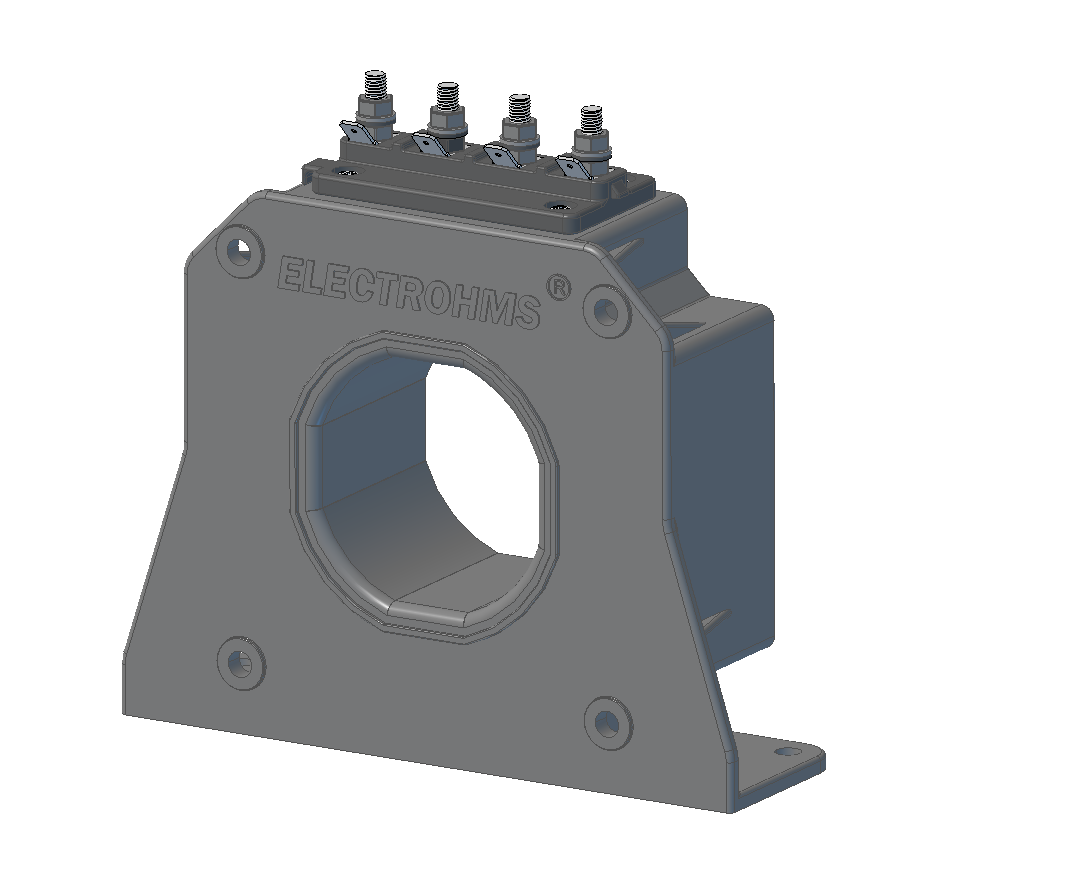

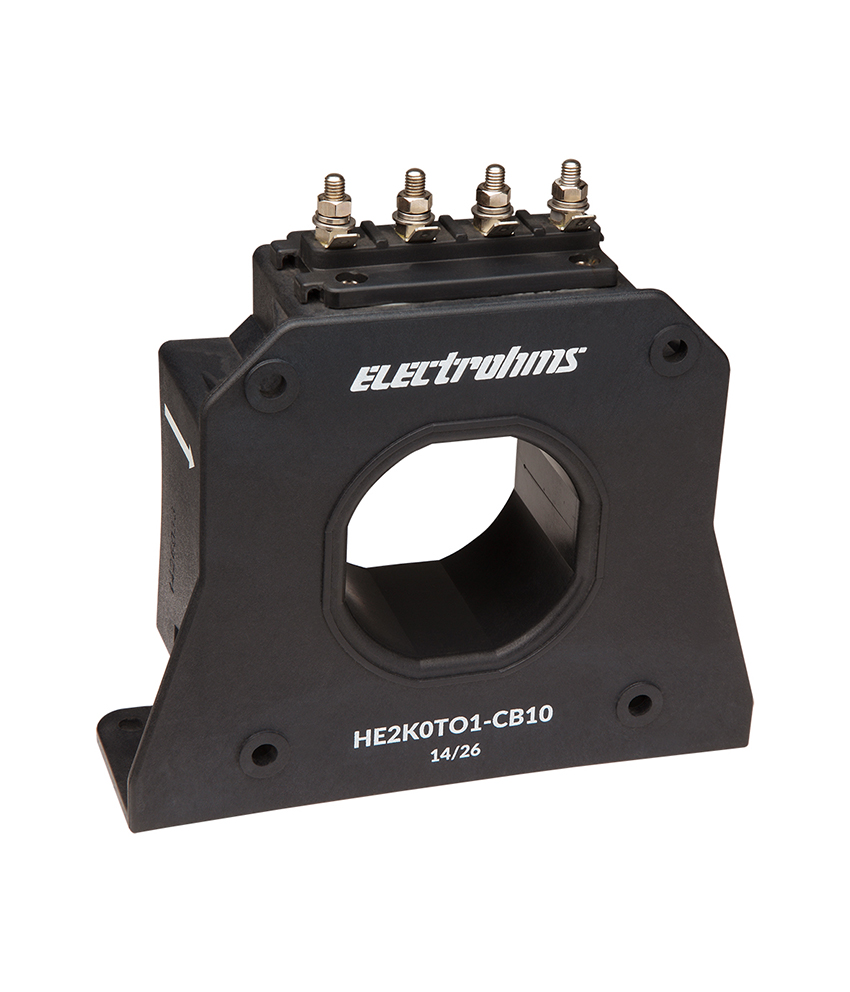

| Product No | HE2K0T01-CB10 |
|---|---|
| Nominal Input (Ipn) | 2000 Arms |
| Max Input (Ip) | ± 3000 A |
| Supply Voltage | ±15 ... ± 24 V |
| Output @Ipn | 400 mA |
| Bandwidth -3dB | DC - 100 kHz |
| Accuracy | ± 0.30 % |
| Secondary Termination | M5 stud with faston Tab |
| Mounting Type | Panel |
KEY FEATURES
- DC, AC and pulse current measurements with galvanic isolation.
- Good accuracy and excellent linearity.
- No insertion loss.
- Low temperature drifts.
- High bandwidth
- Fast response time
RELATED APPLICATION
- Traction converters
- Industrial inverters/UPS.
- AC/DC drives
- Central inverters
- Converters for wind energy
