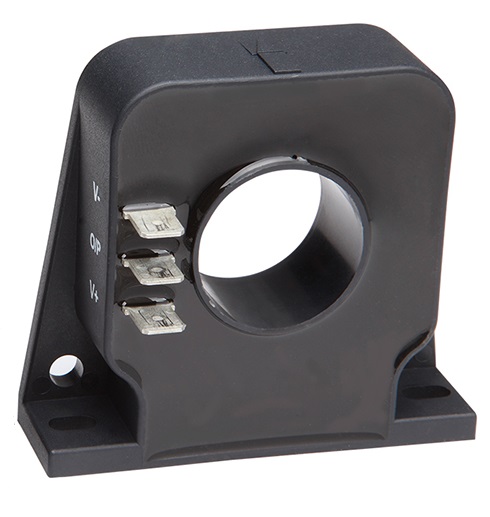

HE300T04

Hall Effect Current Sensors Closed Loop Current Sensor

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.

SPECIFICATION

Product No HE300T04
Nominal Input (Ipn) 300 Arms
Max Input (Ip) ± 500 A
Supply Voltage ±12 ... ± 15 V
Output @Ipn 150 mA
Bandwidth -3dB DC - 100 kHz
Accuracy ± 0.80 %
Secondary Termination Tab Terminals
Mounting Type Panel

KEY FEATURES

  • DC, AC and pulse current measurements with galvanic isolation.
  • Good accuracy and excellent linearity.
  • No insertion losses .
  • low temperature drifts.
  • High bandwidth
  • Fast response.

RELATED APPLICATION

  • Auxilary coAC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery management systems
  • Uninterruptible Power Supplies (Ups)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications inverters in Railways
  • Industrial Inverter/UPS
  • Electronic rectified regulated unit
