HJ100T02

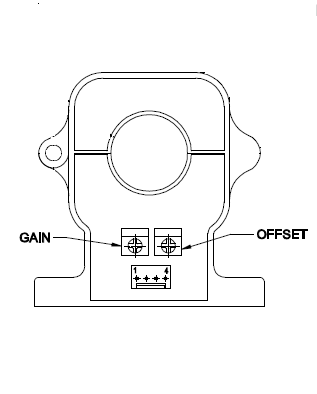

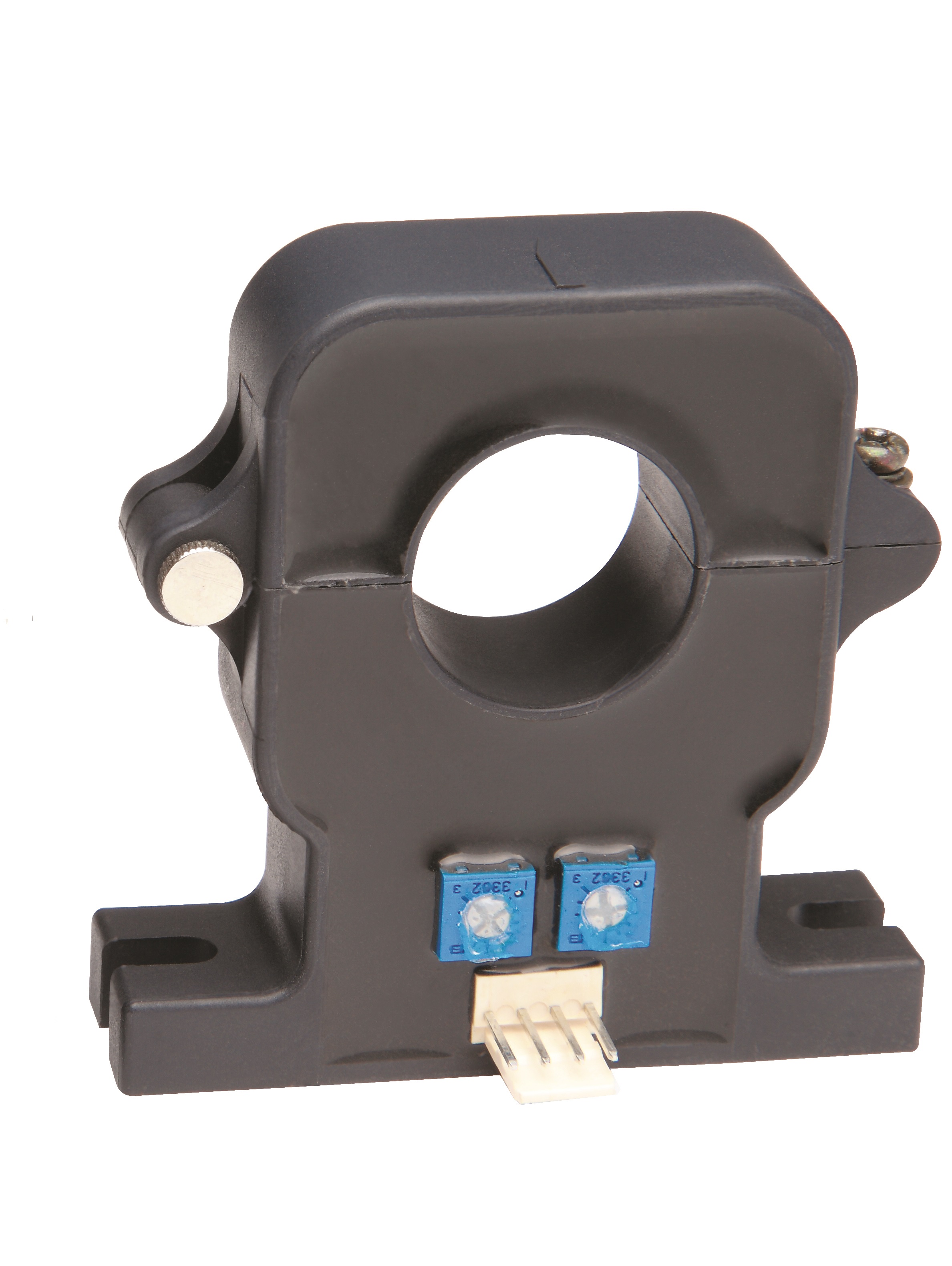

Hall Effect Current Sensors Split Core Hall Effect Current Sensor

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

SPECIFICATION

Product No HJ100T02
Nominal Input (Ipn) 100 Arms
Max Input (Ip) ±200 A
Supply Voltage +5.0 V
Output @Ipn 2.5 ± 1.0 V
Bandwidth -3dB DC - 20 kHz
Accuracy ± 2.0 %
Secondary Termination Connector Header
Mounting Type Panel

KEY FEATURES

  • DC, AC current measurements with galvanic isolation
  • Extended measuring range in the same package
  • Single supply operation
  • Low power consumption
  • Good accuracy at nominal currents

RELATED APPLICATION

  • Battery energy management
  • Telecom power supplies
  • Energy Management
