HK050T03

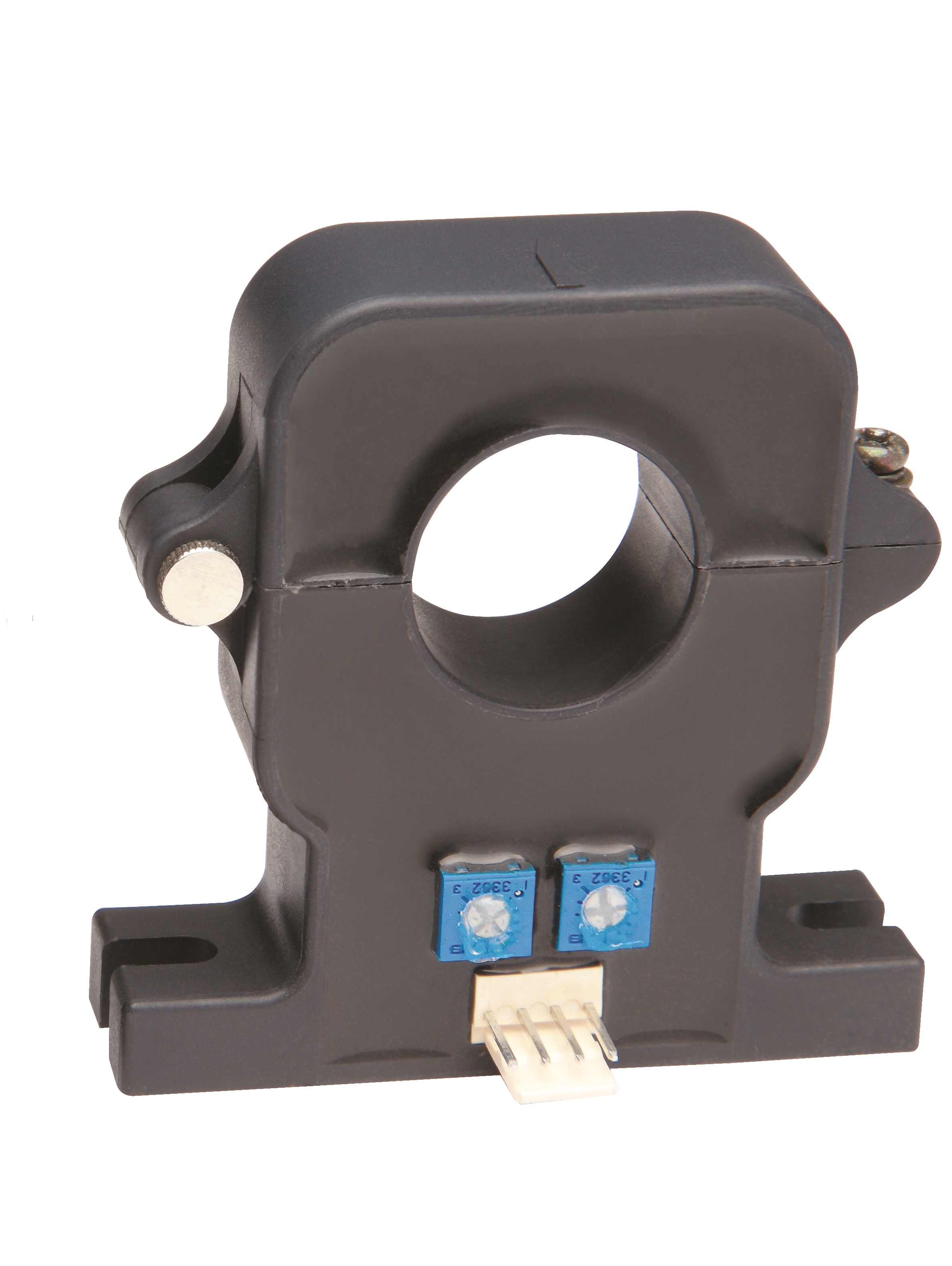

Hall Effect Current Sensors Split Core Hall Effect Current Sensor

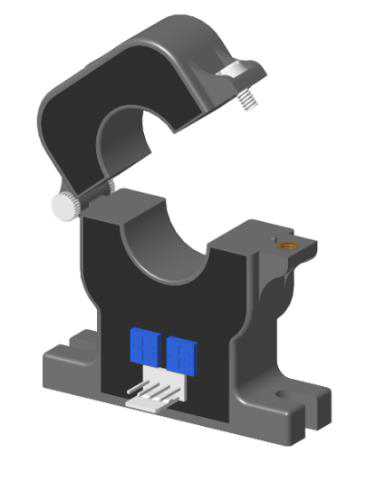

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

SPECIFICATION

Product No HK050T03
Nominal Input (Ipn) 50 Arms
Max Input (Ip) ±100 A
Supply Voltage ±12 ... ± 15 V
Output @Ipn ± 4.0 V
Bandwidth -3dB DC - 20 kHz
Accuracy ±2.0 %
Secondary Termination Connector Header
Mounting Type Panel

KEY FEATURES

  • DC, AC current measurements with galvanic isolation.
  • Split core or clamp on current sensors
  • Low power consumption
  • Good accuracy at nominal current

RELATED APPLICATION

  • DC energy meters.
  • Telecom power supplies
  • Battery energy management
