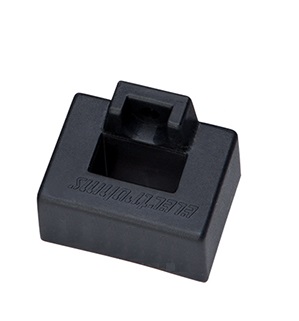

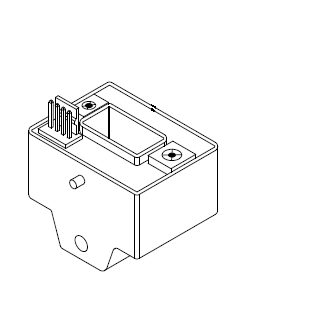

HS500T01

Hall Effect Current Sensors Open Loop Current Sensors

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.

SPECIFICATION

Product No HS500T01
Nominal Input (Ipn) 500 Arms
Max Input (Ip) ± 900 A
Supply Voltage ±15 V
Output @Ipn ± 4.0 V
Bandwidth -3dB DC - 50 kHz
Accuracy ±1.0 %
Secondary Termination Connector Header
Mounting Type Panel

KEY FEATURES

  • DC, AC and pulse current measurements with galvanic isolation
  • Extended measuring range in the same package.
  • Low power consumption
  • Good accuracy at nominal currents

RELATED APPLICATION

  • Welding machines
  • Industrial inverter / UPS
  • Battery energy management
