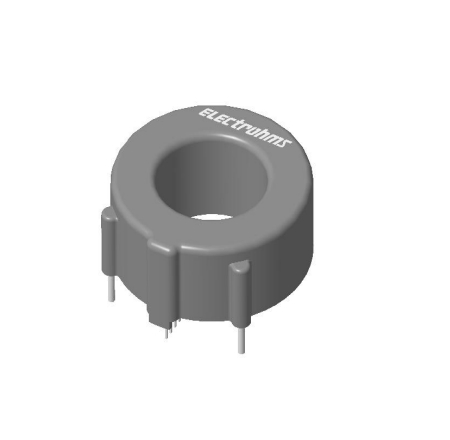

HLE200T01

Hall Effect Current Sensors Open Loop Current Sensors

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, panalized, and low power consumption and are especially advantageous when measuring high currents.




SPECIFICATION

Product No HLE200T01
Nominal Input (Ipn) 200 A
Max Input (Ip) -200 to +600
Supply Voltage 5 V
Output @Ipn  + 1.0 V
Bandwidth -3dB 50 kHz
Accuracy ±1 %
Secondary Termination NA
Mounting Type PCB mountable

KEY FEATURES

  • Used for measurement of electric AC/DC current
  • Open loop current sensor
  • Pulsed in electric & electronic equipment
  • Voltage output
  • PCB mounting type
  • Plastic outer case complaint to UL94-V0

RELATED APPLICATION

  • Used for measurement of electric DC current
  • Pulsed in electric & electronic equipment
