Closed Loop Current Sensor

Closed loop hall effect current sensor are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control application like light control, heater load control etc. These have good accuracy and excellent linearity with low thermal drift.

Nominal Current (A)
Supply Voltage(V)
Output @ Ipn



Closed Loop Current Sensor

Product No Nominal Input (Ipn) Max Input (Ip) Supply Voltage Output @Ipn Bandwidth -3dB Accuracy Secondary Termination Mounting Type

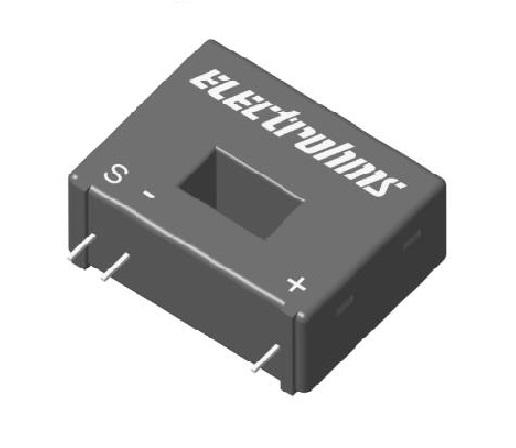

HE055T01 50 Arms ± 70 A ±12 ... ± 15 V 50 mA DC - 200 kHz ± 0.65 % Pin Terminals PCB
HE055T01

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.

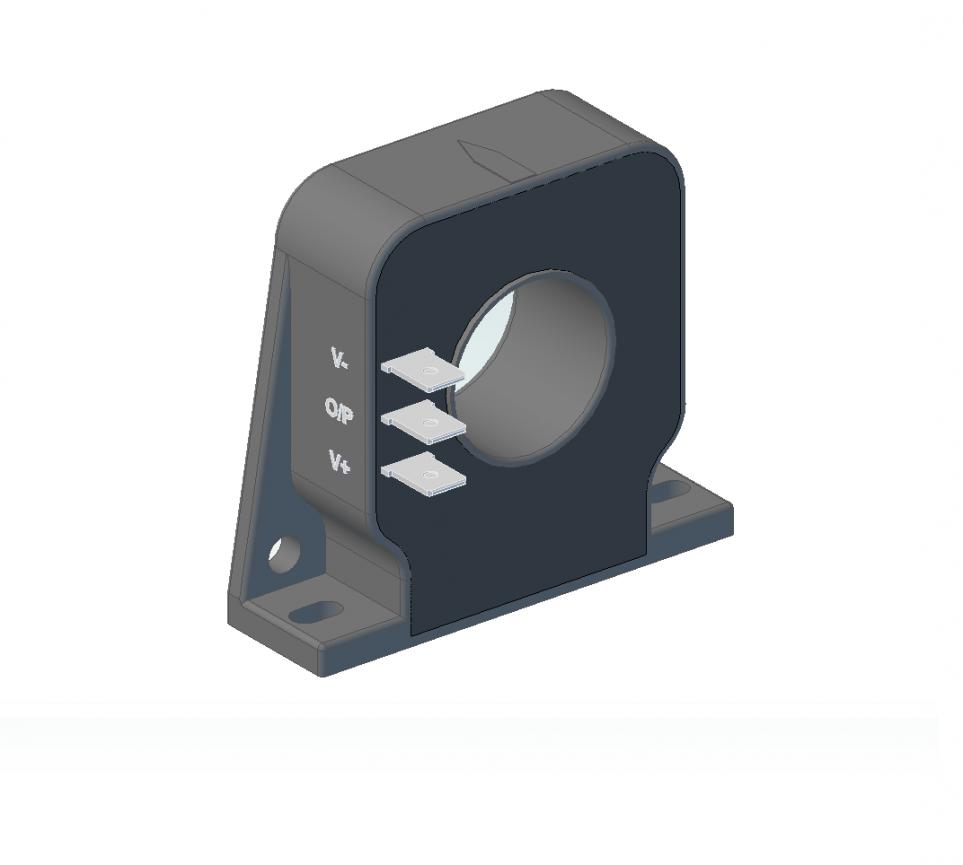

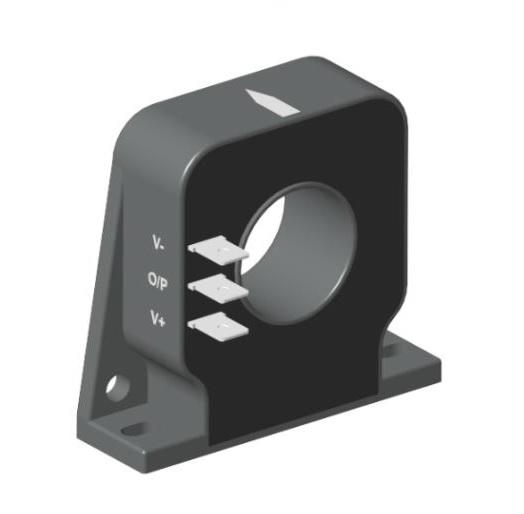

HE050T04 50 Arms ± 75 A ±12 ... ± 15 V 25 mA DC - 100 kHz ± 0.80 % Tab Terminals Panel
HE050T04

These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc


HE100T01 100 Arms ± 150 A ±12 ... ± 15 V 50 mA DC - 200 kHz ± 0.65 % Pin Terminals PCB
HE100T01

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.


HE100T04 100 Arms ± 150 A ±12 ... ± 15 V 50 mA DC - 100 kHz ± 0.80 % Tab Terminals Panel
HE100T04

These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc


HE200T04 200 Arms ± 420 A ±12 ... ± 15 V 100 mA DC - 100 kHz ± 0.80 % Tab Terminals Panel
HE200T04

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control etc.


HE300T04 300 Arms ± 500 A ±12 ... ± 15 V 150 mA DC - 100 kHz ± 0.80 % Tab Terminals Panel
HE300T04

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.


HEF300T03 300 Arms ± 860 A ± 24 V 120 mA DC - 100 kHz ± 0.47 % Connector Header Panel
HEF300T03

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control etc.

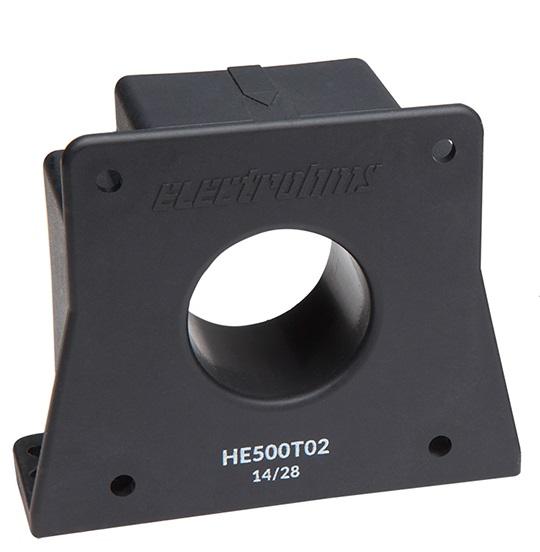

HE500T02 500 Arms ± 800 A ±15 ... ± 24 V 100 mA DC - 100 kHz ± 0.60 % Connector Header Panel
HE500T02

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.

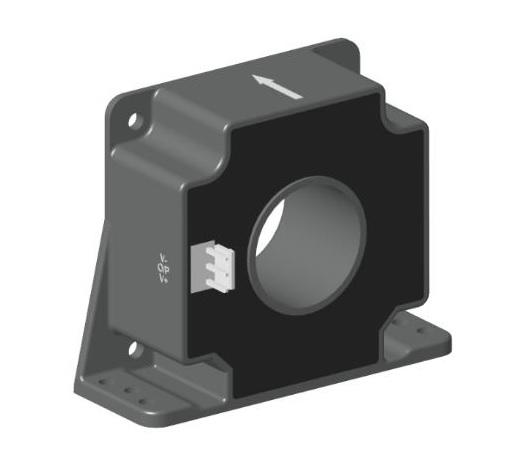

HE500T05 500 Arms ± 800 A ±15 ... ± 24 V 100 mA DC - 100 kHz ± 0.60 % Connector Header Panel
HE500T05

Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc.

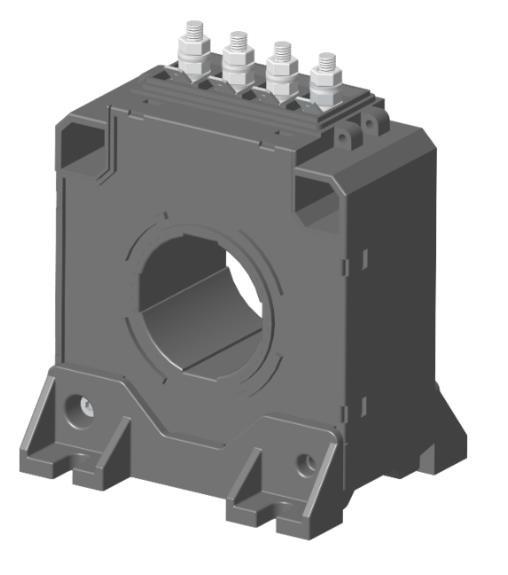

HED500T01 500 Arms ± 1500 A ±15 ... ± 24 V 100 mA DC - 100 kHz ± 0.70 % M5 stud with faston Tab Panel
HED500T01

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.

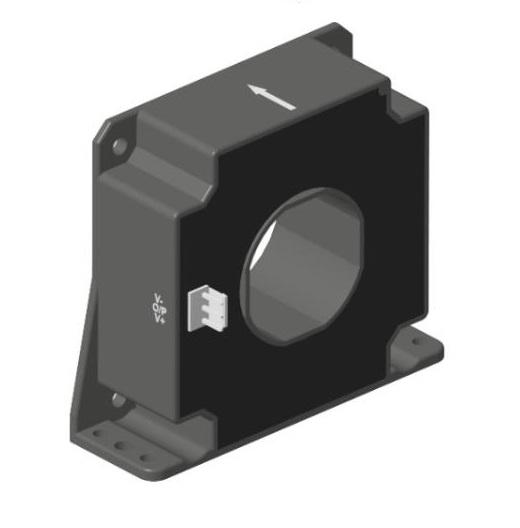

HE1K0T03 1000 Arms ± 1500 A ±15 ... ± 24 V 200 mA DC - 100 kHz ± 0.40 % Connector Header Panel
HE1K0T03

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.


HED1K0T01 1000 Arms ± 2400 A ±15 ... ± 24 V 200 mA DC - 100 kHz ± 0.80 % M5 stud with faston Tab Panel
HED1K0T01

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.


HED1K0T01 - CB11 1000 Arms ± 2400 A ±15 ... ± 24 V 250 mA DC - 100 kHz ± 0.80 % M5 stud with faston Tab Panel
HED1K0T01 - CB11

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.


HER1K0T03 1000 Arms ± 2000 A ± 24 V 200 mA DC - 100 kHz ± 0.30 % AMP Connectors Panel
HER1K0T03

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.


HED1K3T01 1300 Arms ± 3000 A ±15 ... ± 24 V 325 mA DC - 100 kHz ± 0.80 % M5 stud with faston Tab Panel
HED1K3T01

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.


HED1K3T01 CB11 1300 Arms ± 2800 A ±21 ... ± 24 V 325 mA DC - 100 kHz ± 0.40 % M5 stud with faston Tab Panel
HED1K3T01 CB11

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.


HE2K0T01-CB10 2000 Arms ± 3000 A ±15 ... ± 24 V 400 mA DC - 100 kHz ± 0.30 % M5 stud with faston Tab Panel
HE2K0T01-CB10

Closed loop hall effect current sensors are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives.





Custom Design

When an off-the-shelf component won't work, we can partner with you to design and produce custom products for your unique needs. Whether your challenge is regulatory compliance or technology innovation, we can help to reduce time to market and improve your bottom line.

We carefully investigate the design objectives based on the inputs received from you.
Based on cost, size, packaging, electrical performance, certification or approvals required, we create a template of product design
Quote submitted with clear specifications, lead times for prototype and production batches, along with commercials
Rapid prototyping ensures quick shipment and reduction in approval time.
After acceptance of prototypes, a test and acceptance criteria is prepared and same is set up for the regular production batches by our production and Quality assurance team
We ensure that the product required is delivered within the accepted schedule. Hence, if you require a customized solution, we are the right organization to be contacted
