Split Core Hall Effect Current Sensor

Split core hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents. This sensor can be clamped on to the existing cable without interruption of the primary circuit.

Nominal Current (A)
Supply Voltage(V)
Output @ Ipn



Split Core Hall Effect Current Sensor

Product No Nominal Input (Ipn) Max Input (Ip) Supply Voltage Output @Ipn Bandwidth -3dB Accuracy Secondary Termination Mounting Type

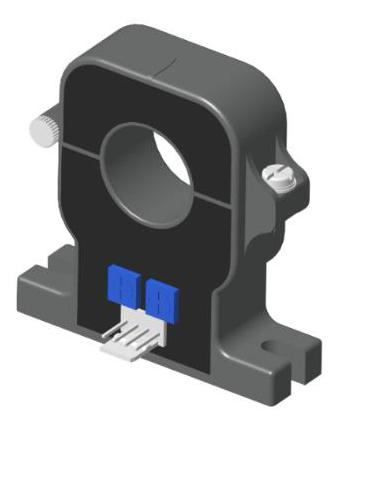

HJ050T02 50 Arms ±100 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ050T02

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

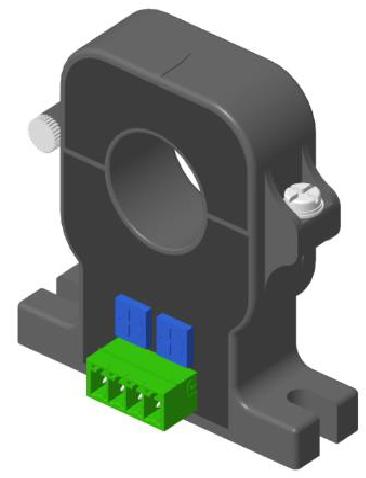

HJ050T09 50 Arms ±100 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ050T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK050T03 50 Arms ±100 A ±12 ... ± 15 V ± 4.0 V DC - 20 kHz ±2.0 % Connector Header Panel
HK050T03

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK50T09 50 Arms ±100 A ±15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK50T09

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ100T02 100 Arms ±200 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ100T02

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ100T09 100 Arms ±200 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ100T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK100T03 100 Arms ±200 A ±12 ... ± 15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK100T03

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK100T09 100 Arms ±200 A ±15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK100T09

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

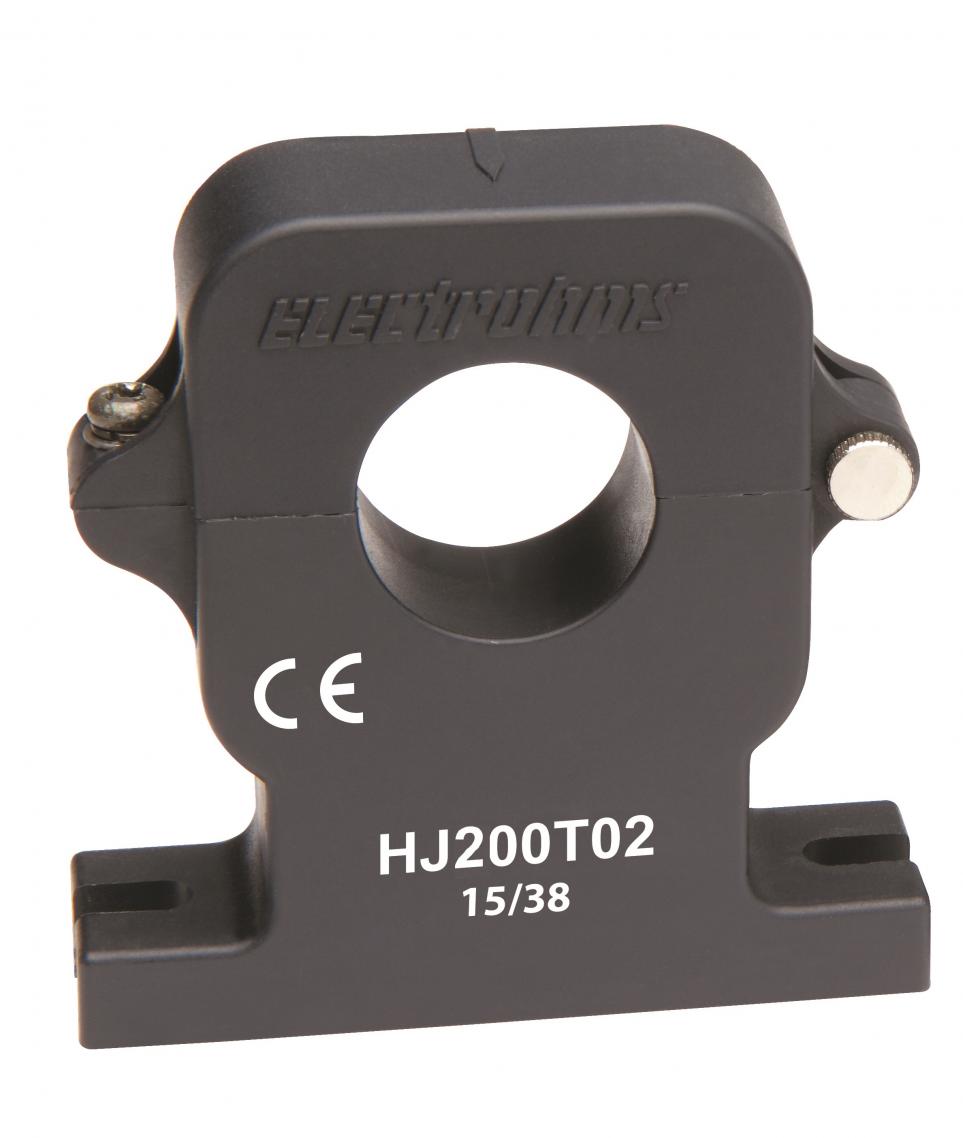

HJ200T02 200 Arms ±400 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ200T02

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ200T09 200 Arms ±400 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ200T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK200T03 200 Arms ±400 A ±12 ... ± 15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK200T03

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK200T09 200 Arms ±400 A ±15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK200T09

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

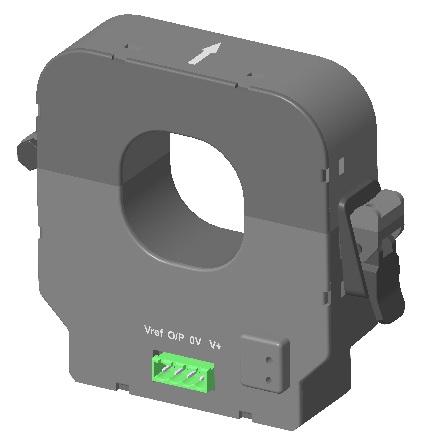

HJ300T02- CB10 300 Arms ±600 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ300T02- CB10

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ300T09 300 Arms ±600 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ300T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK300T03 300 Arms ± 600 A ±12 ... ± 15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK300T03

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK300T09 300 Arms ±600 A ±15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK300T09

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ400T02-CB10 400 Arms ±800 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ400T02-CB10

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ400T09 400 Arms ±800 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ400T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK400T03 400 Arms ±800 A ±12 ... ± 15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK400T03

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK400T09 400 Arms ±800 A ±15 V ± 4.0 V DC - 20 kHz ±2.0 % Connector Header Panel
HK400T09

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ500T02-CB10 500 Arms ±900 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ500T02-CB10

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HJ500T09 500 Arms ±800 A +5.0 V 2.5 ± 1.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HJ500T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK500T03 500 Arms ± 800 A ±12 ... ± 15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK500T03

Split-core hall effect current sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.


HK500T09 500 Arms ±800 A ±15 V ± 4.0 V DC - 20 kHz ± 2.0 % Connector Header Panel
HK500T09

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.

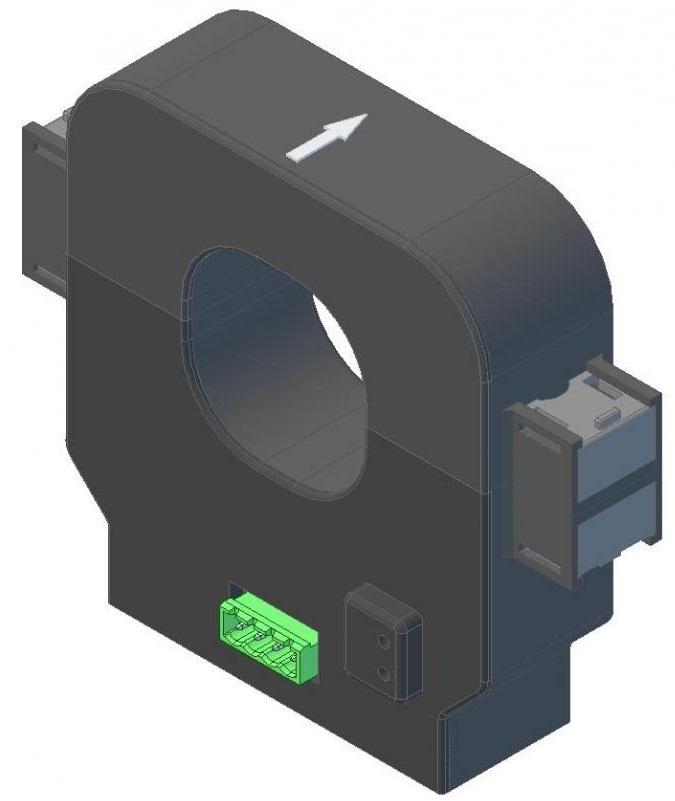

HJA1K5T01 1500 Arms 1800 A +9 ... +18 V 2.5 ± 1.5 V DC ±1.0 % Connector Header Panel
HJA1K5T01

Split-core Hall Effect Current Sensor are perfect for clamping on existing electrical wiring by snapping around the current carrying cable. These are the best solution to measure or sense DC current passing through the center conductor, when the removal of cable lugs or termination is not feasible on critical installations.





Custom Design

When an off-the-shelf component won't work, we can partner with you to design and produce custom products for your unique needs. Whether your challenge is regulatory compliance or technology innovation, we can help to reduce time to market and improve your bottom line.

We carefully investigate the design objectives based on the inputs received from you.
Based on cost, size, packaging, electrical performance, certification or approvals required, we create a template of product design
Quote submitted with clear specifications, lead times for prototype and production batches, along with commercials
Rapid prototyping ensures quick shipment and reduction in approval time.
After acceptance of prototypes, a test and acceptance criteria is prepared and same is set up for the regular production batches by our production and Quality assurance team
We ensure that the product required is delivered within the accepted schedule. Hence, if you require a customized solution, we are the right organization to be contacted
