PRODUCTS

Find Products

I want to find
for use in

Protection & Control

Protection and control of industrial equipment like AC drives, UPS/inverters, current monitoring modules and allied equipment require current transformers for sensing currents.

Nominal Current
Turn Ratio
Accuracy



Protection & Control

Product No Ip (A) Turn Ratio Rb Pri. Opening Secondary Resistance Temp. Operating AE % PE (Deg) Secondary Termination Mounting Type

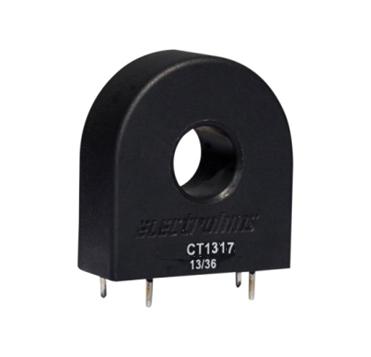

CT1317 0.05 1 : 645 10 kΩ 9.0 mm 38 - 46 Ω -10 ... +60°C ... ... Pin Terminals PCB
CT1317

Protection And Control Current Transformers Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment


CT1337-RC 0.30 1 : 500 100 Ω 6.0 mm 16 Ω -40 ... +85°C ... ... Pin Terminals PCB
CT1337-RC

Protection And Control Current Transformers Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment

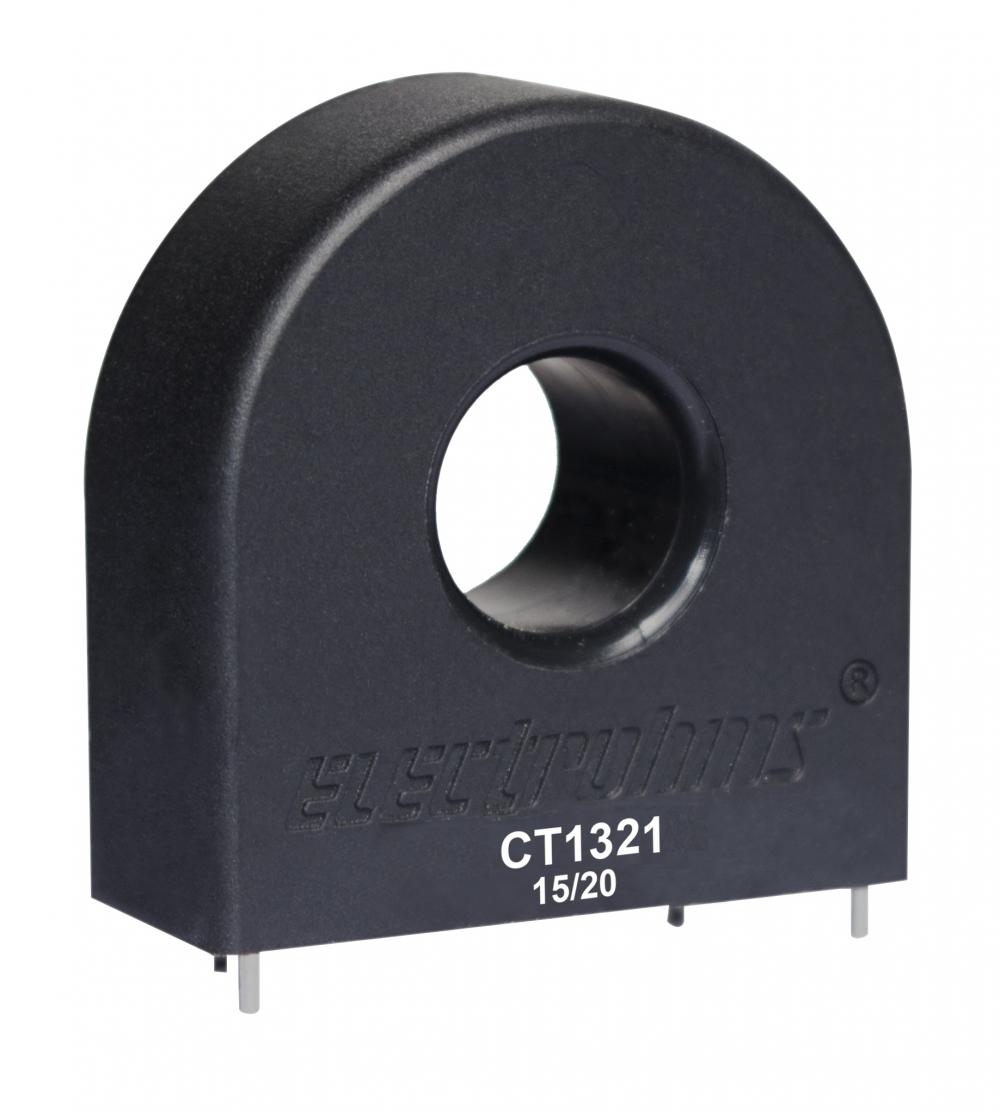

CT1321 2 1 : 1000 500 Ω 9.0 mm 37 Ω -40 ... +85°C ... ... Pin Terminals PCB
CT1321

Protection And Control Current Transformers Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment

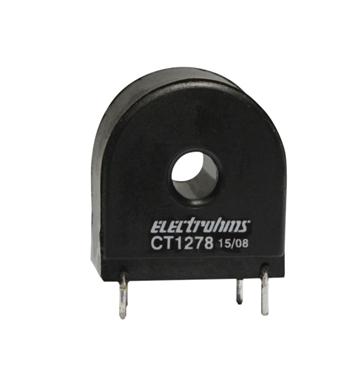

CT1278 5 1 : 4000 390 Ω 6.0 mm 219 - 279 Ω -10 ... +60°C 3 ... Pin Terminals PCB
CT1278

Protection And Control Current Transformers Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment


CT1270 5 1 : 700 10 Ω 5.0 mm 28 Ω -10 ... +60°C 1.5 ... Pin Terminals PCB
CT1270

Protection And Control Current Transformers Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment


CT1202-RC 40 1 : 1000 100 Ω 9.0 mm 36 - 46 Ω -10 ... +60°C ... ... Flyleads ---
CT1202-RC

Protection And Control Current Transformers Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment





Custom Design

When an off-the-shelf component won't work, we can partner with you to design and produce custom products for your unique needs. Whether your challenge is regulatory compliance or technology innovation, we can help to reduce time to market and improve your bottom line.

We carefully investigate the design objectives based on the inputs received from you.
Based on cost, size, packaging, electrical performance, certification or approvals required, we create a template of product design
Quote submitted with clear specifications, lead times for prototype and production batches, along with commercials
Rapid prototyping ensures quick shipment and reduction in approval time.
After acceptance of prototypes, a test and acceptance criteria is prepared and same is set up for the regular production batches by our production and Quality assurance team
We ensure that the product required is delivered within the accepted schedule. Hence, if you require a customized solution, we are the right organization to be contacted
