Split Core Current Transformer

ELECTROHMS Split Core Current Transformer are designed for fast and easy installation without disconnecting cable or bus- bar circuits. These sensors are compact in size and ideal for installation on existing cable.

Nominal Current
Accuracy



Split Core Current Transformer

Product No Ip (A) Output @ Ipn Pri. Opening Temp. Operating AE % PE (Deg) Secondary Termination
ST1361-V33310... 80 10... 80 0.333 V 09 mm -10°c ... +70°c 1.0 ... Flylead
ST1361-V33310... 80

ELECTROHMS Split Core Current Transformer are designed for fast and easy installation without disconnecting cable or bus- bar circuits. These sensor's are compact in size and ideal for installation on existing cable.

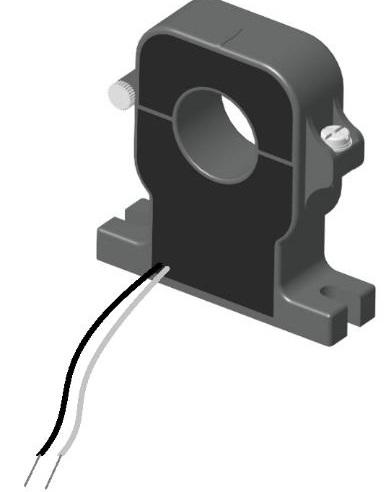

ST1369-V333050...200 050... 200 0.333 V 20 mm -10°c ... +70°c 1.0 ... Flylead
ST1369-V333050...200

ELECTROHMS Split Core Current Transformer are designed for fast and easy installation without disconnecting cable or bus- bar circuits. These sensor's are compact in size and ideal for installation on existing cable.

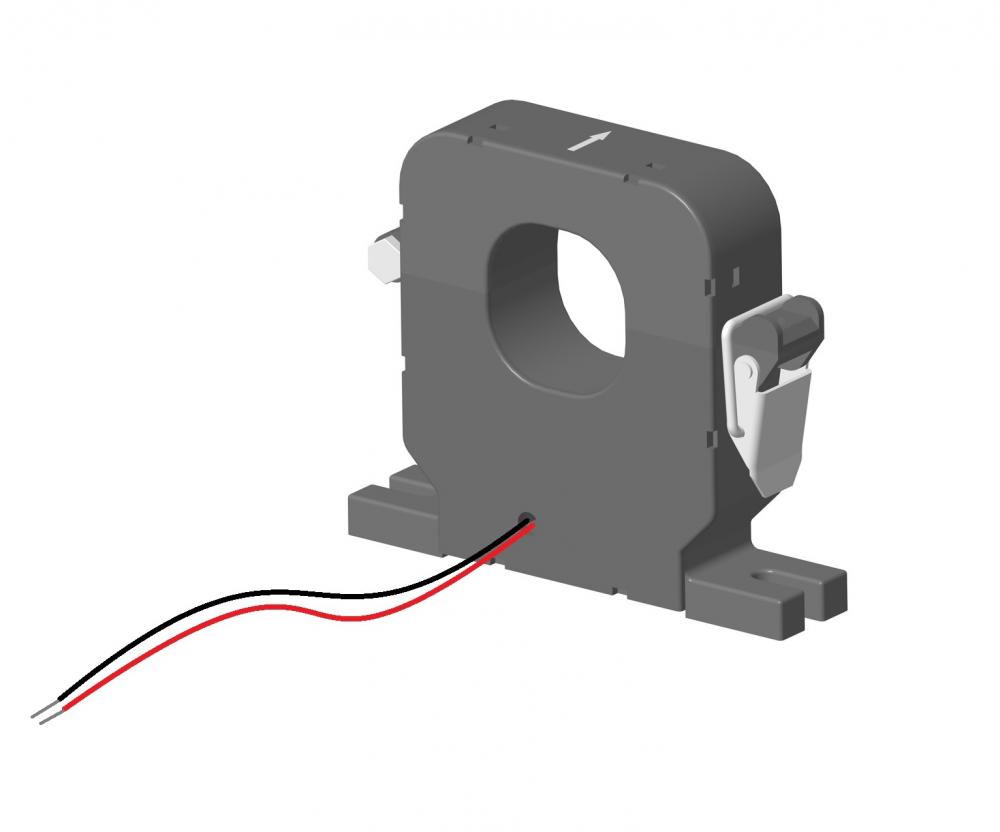

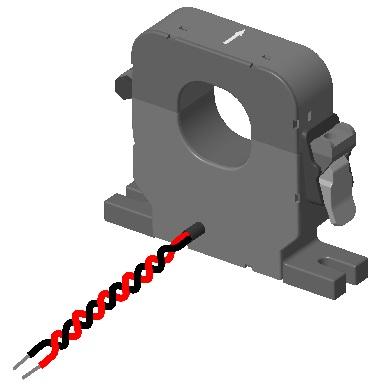

ST1370-V333100...1K0 100...1000 0.333 V 40 mm -10°c ... +70°c 1.0 ... Flylead
ST1370-V333100...1K0

ELECTROHMS Split Core Current Transformer are designed for fast and easy installation without disconnecting cable or bus- bar circuits. These sensor's are compact in size and ideal for installation on existing cable.

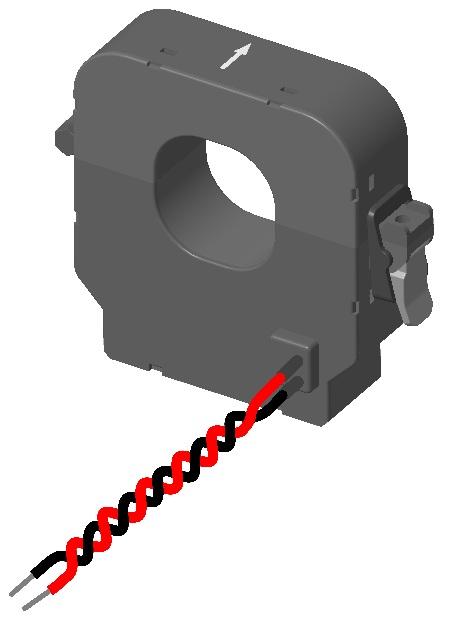

ST1383-V333500...1K5 500...1500 0.333 V 50 mm -10°c ... +70°c 1.0 ... Flylead
ST1383-V333500...1K5

ELECTROHMS Split Core Current Transformer are designed for fast and easy installation without disconnecting cable or bus- bar circuits. These sensor's are compact in size and ideal for installation on existing cable.





Custom Design

When an off-the-shelf component won't work, we can partner with you to design and produce custom products for your unique needs. Whether your challenge is regulatory compliance or technology innovation, we can help to reduce time to market and improve your bottom line.

We carefully investigate the design objectives based on the inputs received from you.
Based on cost, size, packaging, electrical performance, certification or approvals required, we create a template of product design
Quote submitted with clear specifications, lead times for prototype and production batches, along with commercials
Rapid prototyping ensures quick shipment and reduction in approval time.
After acceptance of prototypes, a test and acceptance criteria is prepared and same is set up for the regular production batches by our production and Quality assurance team
We ensure that the product required is delivered within the accepted schedule. Hence, if you require a customized solution, we are the right organization to be contacted
