Open Loop Current Sensors

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.

Nominal Current (A)
Supply Voltage(V)
Output @ Ipn



Open Loop Current Sensors

Product No Nominal Input (Ipn) Max Input (Ip) Supply Voltage Output @Ipn Bandwidth -3dB Accuracy Secondary Termination Mounting Type
HL200T05-CB10 200 Arms ± 400 A 5 V ± 0.625 V 20 kHz <1 % Connector Header Panel
HL200T05-CB10

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HLB600T01 600 A ± 600 5 V + 2.0 V 20 kHz <1 % NA PCB mountable
HLB600T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HLB800T01 800 A ± 800 5 V + 2.0 V 20 kHz <1 % NA PCB mountable
HLB800T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HLE200T01 200 A -200 to +600 5 V + 1.0 V 50 kHz ±1 % NA PCB mountable
HLE200T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HLG075/1K0T01 75 A,1000 A 1000 5 V + 2.0 V 70 Hz ±1 % Rectangular Connector Housing Panel
HLG075/1K0T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.

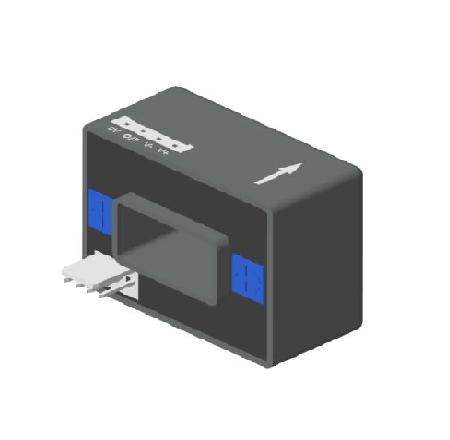

HS050T01 50 Arms ± 150 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS050T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HS100T01 100 Arms ± 300 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS100T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HS200T01 200 Arms ± 600 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS200T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSS200T01 200 Arms ±600 A ±15 V ± 4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSS200T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HS300T01 300 Arms ± 900 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS300T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HS400T01 400 Arms ± 900 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS400T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSS400T01 400 Arms ±1200 A ±15 V ± 4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSS400T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HS500T01 500 Arms ± 900 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS500T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSS500T01 500 Arms ±1500A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSS500T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSM500T01 500 Arms ±1500A ±15 ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM500T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HS600T01 600 Arms ± 900 A ±15 V ± 4.0 V DC - 50 kHz ±1.0 % Connector Header Panel
HS600T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSS600T01 600 Arms ±1800 A ±15 V ± 4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSS600T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSM600T01 600 Arms ±1800A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM600T01

Open loop hall effect current sensor measure DC, Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSM750T01 750 Arms ±2250A ±15 ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM750T01

Compact Hall Effect Current Sensor with open loop technology to measure DC, AC and complex current wave forms while providing galvanic isolation.The advantages is low insertion losses, easy installation, low power consumption and only one design for wide current ratings range.


HSS800T01 800 Arms ±2400A ±15 ±4 DC - 25 kHz ±1.0 % Connector Header Panel
HSS800T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSM850T01 850 Arms ±2550A ±15 V ±4.0 V DC - 20 kHz ±1.0 % Connector Header Panel
HSM850T01

Compact Hall Effect Current Sensor with open loop technology to measure DC, AC and complex current wave forms while providing galvanic isolation.The advantages is low insertion losses, easy installation, low power consumption and only one design for wide current ratings range.


HSM1K0T01 1000 Arms ±3000A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM1K0T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSS1K0T01 1000 Arms ±2500A ±15 ±4 DC - 25 kHz ±1.0 % Connector Header Panel
HSS1K0T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSS1K2T01 1200 Arms ±2500A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSS1K2T01

Open loop Hall Effect Current Sensor measure DC, AC and complex current wave forms while providing galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption.


HSS1K5T01 1500 Arms ±2500A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSS1K5T01

Open loop Hall Effect Current Sensor measure DC, AC and complex current wave forms while providing galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption.


HSM1K5T01 1500 Arms ±3000A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM1K5T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSM2K0T01 2000 Arms ±5500A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM2K0T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.


HSM2K5T01 2500 Arms ±5500A ±15 V ±4.0 V DC - 25 kHz ±1.0 % Connector Header Panel
HSM2K5T01

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, lightweight and low power consumption and are especially advantageous when measuring high currents.
