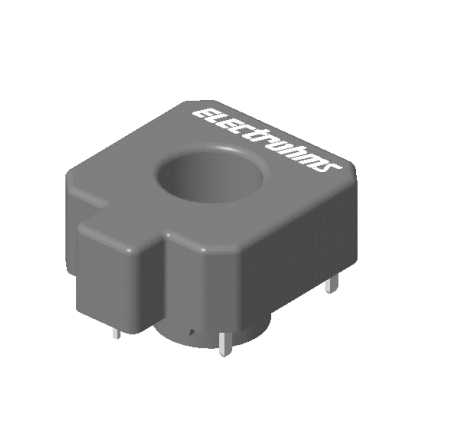

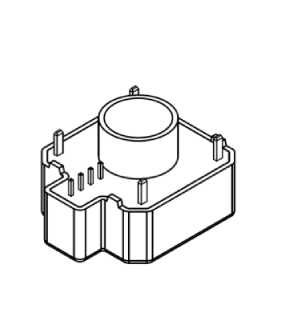

HLB800T01

Hall Effect Current Sensors Open Loop Current Sensors

Open loop hall effect current sensor measure DC, AC and complex current wave forms with galvanic isolation. The advantages include low cost, small size, panalized, and low power consumption and are especially advantageous when measuring high currents.




SPECIFICATION

Product No HLB800T01
Nominal Input (Ipn) 800 A
Max Input (Ip) ± 800
Supply Voltage 5 V
Output @Ipn  + 2.0 V
Bandwidth -3dB 20 kHz
Accuracy <1 %
Secondary Termination NA
Mounting Type PCB mountable

KEY FEATURES

  • Open loop current sensor
  • Voltage Output
  • PCB mountable
  • Plastic outer case complaint to UL94-VO

RELATED APPLICATION

  • Used for measurement of electric DC current
  • Pulsed in electric & electronic equipment
